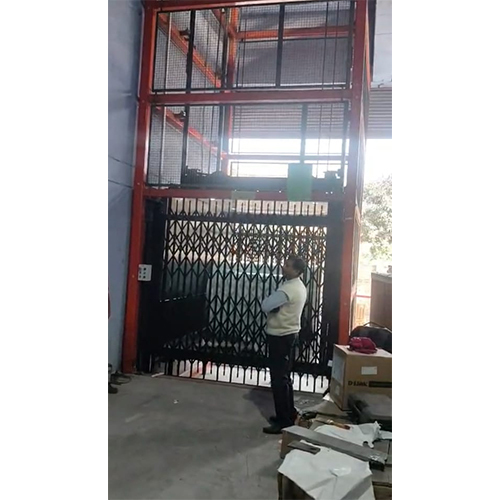

Winch drum water goods lift capacity 5 mt

Winch drum water goods lift capacity 5 mt Specification

Machine Room Size
Compact / As per size of lift

Car Dimension
Customized as per requirement

Noise Level
75 dB

Door Opening Size
Customizable

Overhead Height
Minimum 2000 mm

Inclination
Vertical

Hoist Way Size
As per lift design

Type
Winch Drum Water Goods Lift

Usage
Goods Material Lifting in Industrial and Construction Sites

Voltage
415V AC, 3 Phase, 50 Hz

Load Capacity
5000 Kg

Pit Depth
Minimum 1000 mm

Material
Heavy Duty Steel Structure

Drive Type
Electric Winch Drive

Power Supply
Electric Powered

Speed
6-8 m/min (customizable)

Max. Lifting Height
Up to 30 meters (as per site requirement)

Max. Lifting Weight
5 Ton

Mechanism Type
Winch Drum with Steel Wire Rope

Working Temperature
-10C to +50C

Control Device
Push Button Pendant / Wireless Remote

Safety Device
Overload Protection, Limit Switches, Emergency Stop

Capacity
5 MT

Wire Rope Diameter
12 mm or as required

Lifting Platform Surface
Anti-skid Plate

Travel Limiter
Provided for Top & Bottom Limits

Mounting
Floor or Wall Mounted Options

Protection Grade
IP54 for Electrical Components

Operating Method
Motorized with Pendant or Remote Control

Motor Power
7.5 kW

Installation
On-site Installation Service Available

Finish
Powder Coated / Painted

Application
Warehouse, Factory, Construction Area Goods Transfer

Brake Type
Electromagnetic Brake

Winch drum water goods lift capacity 5 mt Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
50 Units Per Month

Delivery Time
20-25 Days

About Winch drum water goods lift capacity 5 mt

Buy the sterling Winch Drum Water Goods Lift and experience instant savings with this phenomenal equipment, tailored for heavy-duty warehouse, factory, or construction site material transfer. Its invincible 5 MT capacity paired with a customizable 12 mm wire rope ensures robust performance. Enjoy flexible installation-floor or wall mounted-and superior safety with IP54-rated components, travel limiters, overload protection, and emergency stop. The anti-skid platform and powder-coated finish add durability, while the versatile control (pendant or remote) and customizable lifting height make it ideal for varied material handling challenges. Exported and supported across India.

Application and Versatile Usage

The Winch Drum Water Goods Lift (5 MT) is specifically engineered for efficient material lifting in warehouses, factories, and construction sites. Used as a key solution for vertical goods movement, it safely handles heavy loads up to 5 tons with ease. This lift is ideal for general use in industrial environments, transferring equipment, supplies, and raw materials, thereby optimizing space and reducing manual handling effort.

Sample Policy and Export Logistics

Our Winch Drum Water Goods Lift comes with a clearly outlined sample policy for client evaluation, ensuring complete satisfaction before major order placement. The product is shipped from our designated FOB port, ensuring prompt drop-off and order completion. We cater to main export markets across Asia, the Middle East, and Africa, providing reliable shipment tracking through every order phase, from processing to final delivery.

FAQ's of Winch drum water goods lift capacity 5 mt:

Q: How is the Winch Drum Water Goods Lift typically operated?

A: The lift is operated using a motorized system controlled by either a pendant push button or a wireless remote, allowing safe and flexible management of lifting operations in various environments.

Q: What is the maximum load capacity of this goods lift?

A: This model supports a maximum lifting weight of 5 metric tons (5000 kg), making it ideal for heavy-duty industrial applications and construction sites.

Q: Where can the Winch Drum Water Goods Lift be installed?

A: It can be installed on-site with floor or wall mounting options, tailored to your premises' requirements, and our expert team provides on-site installation services for seamless setup.

Q: What safety features are provided with this lift?

A: The lift is equipped with overload protection, electromagnetic brakes, travel limiters for top and bottom positions, limit switches, and an emergency stop mechanism to ensure optimal safety during operations.

Q: What are the main benefits of using this goods lift in industrial applications?

A: Its sturdy design, customizable specifications, and advanced control options offer increased productivity, reduced manual effort, and enhanced safety for material lifting and handling.
