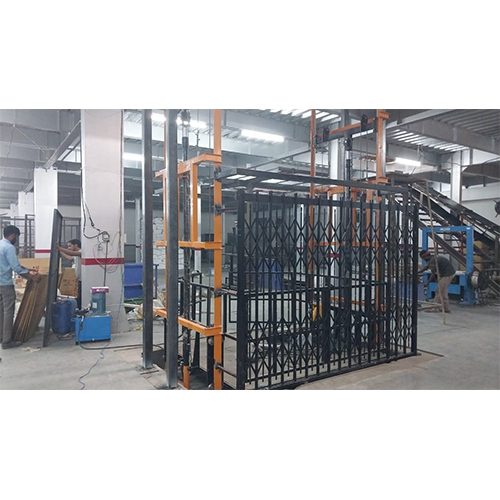

Double Mast Hydraulic Goods Lift Capacity 3mt

Double Mast Hydraulic Goods Lift Capacity 3mt Specification

Usage
Industrial Goods Transportation

Door Opening Size
1800 mm x 2000 mm (Customizable)

Noise Level
< 65 dB

Load Capacity
3000 kg

Overhead Height
2200 mm

Car Dimension
2000 mm x 2000 mm (Customizable)

Pit Depth
250 mm

Voltage
380 V / 415 V AC

Inclination
0 (Vertical)

Type
Double Mast Hydraulic Goods Lift

Hoist Way Size
2500 mm x 2300 mm

Machine Room Size
Not Required (Machine Room-less Design)

Material
Mild Steel / Stainless Steel Structure

Drive Type
Hydraulic

Power Supply
Three Phase, 50 Hz

Speed
0.15~0.2 m/s

Max. Lifting Height
Up to 20 m

Max. Lifting Weight
3 Metric Ton

Mechanism Type
Hydraulic Lifting

Working Temperature
-10C to +60C

Control Device
Push Button / Pendant Control

Safety Device
Limit Switch, Overload Protection, Emergency Stop

Capacity
3 MT

Cabin Entry
Single or Double side entry

Installation Location
Indoor / Outdoor

Control Panel
PLC Based / Standard

Interlocking System
Provided

Door Type
Manual / Automatic (Collapsible, Swing, or Shutter Doors)

Floor Levels
Multi-floor (Up to 8 stops)

Emergency Lowering
Provided

Operation
Electric Hydraulic

Power Consumption
3.0~4.0 kW

Lift Structure
Self Supported or Wall Mounted

Ramp
Optional

Guiding System
Roller / Channel Guide

Color
As per requirement

Surface Finish
Powder Coated / Painted

Double Mast Hydraulic Goods Lift Capacity 3mt Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
50 Units Per Month

Delivery Time
20-25 Days

About Double Mast Hydraulic Goods Lift Capacity 3mt

Experience a world-class lifting solution with our Double Mast Hydraulic Goods Lift, offering a popular 3 MT capacity and radiant performance for both indoor and outdoor applications. Boasting a special powder-coated or painted surface finish, this enviable lift operates via electric hydraulic power for multi-floor transport-up to 8 stops. It ensures flexibility with customizable cabin entry, lift structure, and color. The hydraulic drive delivers smooth, quiet operation (<65 dB), and includes advanced safety features like interlocking and overload protection, making it the perfect choice for industrial goods handling in any modern facility.

Double Mast Hydraulic Goods Lift: Application & Competitive Edge

The Double Mast Hydraulic Goods Lift (3mt) excels in plant environments for efficient vertical transportation of heavy industrial materials. Its competitive advantages include self-supported or wall-mounted configurations, machine room-less design, and customizable sizes. With options for manual or automatic doors and a robust guiding system, this lift seamlessly integrates into various plant layouts. Compatible with diverse application media, such as pallets and crates, it enhances operational workflow, offering reliable, safe, and cost-effective material movement across multiple floors.

Export Markets & Sample Policy: Reliable Worldwide Shipment

Our Double Mast Hydraulic Goods Lift (3mt) is actively shipped across global markets, establishing us as a trusted exporter, manufacturer, and supplier from India. We cater to regions with stringent freight and industrial requirements. To help clients evaluate suitability, we offer a special sample policy and samples are available upon request, subject to reasonable outlay and shipping terms. Count on smooth logistics and responsive support for your machinery imports, ensuring satisfaction from inquiry to installation.

FAQ's of Double Mast Hydraulic Goods Lift Capacity 3mt:

Q: How does the Double Mast Hydraulic Goods Lift enhance operational safety?

A: This radiant lift features an enviable suite of safety devices including limit switches, overload protection, emergency lowering, and emergency stop features, as well as an interlocking system to prevent improper operation.

Q: What is the process for installing this lift in an industrial facility?

A: Installation is streamlined due to a self-supported or wall-mounted design and machine room-less construction. Our team manages site assessment, structural customization, and fitting, making integration in either indoor or outdoor settings efficient.

Q: Where can the Double Mast Hydraulic Goods Lift be effectively used?

A: It's ideally suited for multi-floor industrial goods transportation within factories, warehouses, and distribution centers, regardless of floor level complexities.

Q: What are the control and operation options available for this lift?

A: Operators can use a PLC-based or standard control panel, with options for push-button or pendant control for versatile and secure management of lifting operations.

Q: When is it advisable to choose the optional ramp and customizable door types?

A: The ramp is suggested when regular cart or pallet loading is required, while automatic or collapsible doors suit high-traffic or hands-free environments, making loading and unloading more convenient.
