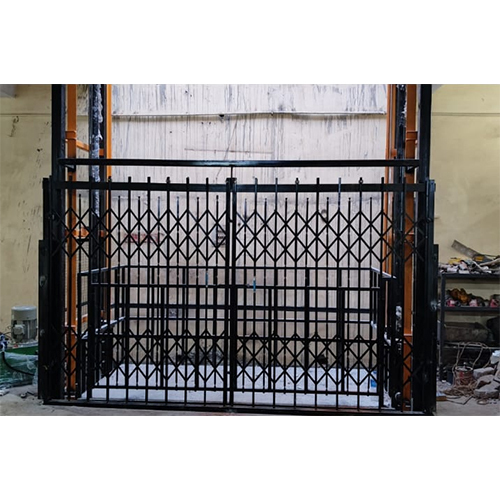

Double mast hydraulic goods lift Independent structure, capacity - 3mt

Double mast hydraulic goods lift Independent structure, capacity - 3mt Specification

Machine Room Size
No separate machine room required

Type
Double Mast, Independent Structure

Usage
Industrial Goods Transportation

Load Capacity
3000 kg

Voltage
380V / 415V, 3 Phase

Overhead Height
Minimum 2500mm

Inclination
0 (Vertical Lift)

Hoist Way Size
Customized as per site

Door Opening Size
Customizable as per client requirement

Noise Level
<70 dB(A)

Car Dimension
Customizable; typically 2000mm x 1800mm x 2100mm

Pit Depth
Minimum 120mm

Material
Heavy Duty Mild Steel Structure

Drive Type
Hydraulic

Power Supply
Electric

Speed
0.15 - 0.2 m/s

Max. Lifting Height
Up to 15m (Customizable)

Max. Lifting Weight
3 Metric Ton

Mechanism Type
Hydraulic Double Mast

Working Temperature
-10C to +45C

Control Device
Push Button & PLC Based Control Panel

Safety Device
Emergency Stop, Door Interlock, Limit Switches

Capacity
3 MT

Service Support
Available Nationwide

Safety Features
Overload Valve, Manual Lowering Valve, Alarm Bell, Buffer Springs

Cable Management
Concealed in Mast Structure

Hydraulic Pump
High Pressure, Low Noise Design

Door Type
Manual / Automatic (Swing/Foldable)

Control Panel Location
Landing Side or Car Side

Finish
Powder Coated / Painted

Standards Compliance
Conforms to IS / EN Elevator Safety Standards

Installation Location
Indoor / Outdoor

Emergency Lowering
Provided by Manual Release Valve

Power Consumption
3.5 - 5.5 kW (Depending on Size and Load)

Lifting Method
Hydraulic Cylinder with Heavy Duty Chain

Platform Surface
Chequered Plate for Anti-Slip

Applicable Industries
Warehouses, Factories, Workshops, Logistics Centers

Operation
Semi Automatic / Manual

Oil Tank Capacity
60-100 Litres (Depends on Lifting Height)

Guide Rails
Heavy Duty Solid Bar Rail

Double mast hydraulic goods lift Independent structure, capacity - 3mt Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
50 Units Per Month

Delivery Time
20-25 Days

About Double mast hydraulic goods lift Independent structure, capacity - 3mt

Highly recommended for peerless industrial efficiency, our Double Mast Hydraulic Goods Lift with an independent structure and 3MT capacity offers imposing performance for indoor and outdoor installation. Take advantage of advanced purchase flexibility, superior splendiferous features like a chequered anti-slip platform, and semi-automatic/manual operation. With low-noise, high-pressure pumps, robust steel rails, and complete overload safety, the lift is ideal for heavy-duty warehousing, logistics, and manufacturing. Power consumption of just 3.5-5.5 kW, customizable dimensions, and nationwide support position this unit as a must-have for businesses seeking reliability and high safety standards compliance.

Exceptional Usage & Versatile Applications

Engineered for robust vertical transportation, the Double Mast Hydraulic Goods Lift-Independent Structure, 3MT capacity-serves diverse applications including warehouses, factories, workshops, and logistics centers. The vertical hydraulic mechanism ensures smooth handling of heavy materials, enhancing operational efficiency. Its splendiferous safety features, rugged construction, and customizable car and hoistway sizes accommodate a broad spectrum of load requirements, making it suitable for both daily indoor and outdoor industrial use. This peerless lift stands out in heavy-duty, high-frequency industrial settings.

Transparent Payment, Secure Packaging, Certified Quality

Our transparent expenditure process allows for convenient advance payments, ensuring a seamless order experience. Shipped goods are securely packaged to withstand transit and handling in the domestic market. Each lift conforms to IS/EN elevator safety standards, with full certifications to instill confidence in your purchase. We cater to bespoke requirements, supporting clients from selection through delivery, ensuring only certified and quality-assured equipment arrives at your facility.

FAQ's of Double mast hydraulic goods lift Independent structure, capacity - 3mt:

Q: How does the double mast hydraulic goods lift enhance workplace safety during operations?

A: The lift integrates several advanced safety features, including overload valves, emergency stop buttons, manual lowering valves, door interlocks, and buffer springs, all ensuring safe and secure lifting operations. Its independent solid bar guide rails and compliance with IS/EN standards greatly minimize risks during usage.

Q: What industries most benefit from using this double mast hydraulic lift?

A: Warehouses, factories, workshops, and logistics centers benefit significantly, as the lift efficiently manages the vertical transportation of heavy goods up to 3 metric tons, optimizing internal material flow and enhancing operational productivity.

Q: When should clients choose advance purchase for their goods lift needs?

A: Advance purchase is highly recommended to guarantee timely delivery, especially for custom-sized car dimensions and specific site requirements, allowing clients to take advantage of prioritized manufacturing and shipment scheduling.

Q: Where can the double mast hydraulic lift be installed?

A: This peerless lift is suitable for both indoor and outdoor locations due to its durable, weather-resistant construction and flexible independent structure. It is perfect for sites with challenging space constraints, needing no separate machine room.

Q: What is the process for installation and after-sales support nationwide?

A: Once ordered, a team of experienced technicians oversees installation, configuration, and safety checks. Nationwide service support ensures troubleshooting and routine maintenance-delivering unmatched reliability and continued operational safety.
